11.6 inch Portable monitor 1366X768 lcd display TFT gaming monitor for PC Raspberry Pi - HDMI-Compatible

11.6 inch Portable monitor 1366X768 lcd display TFT gaming monitor for PC Raspberry Pi - HDMI-Compatible

Category: Screens & Displays
$59.99 $49.99
Out of Stock
SKU: PCE-LCD-11.6-1366X768-001
This 11.6 Inch Portable Monitor features a 1366×768 TFT LCD display with a 16:9 ratio, 60Hz refresh rate, and 200cd/m² brightness, supporting HDMI-compatible and Type-C connections. Measuring 290mm x 188mm x 12.5mm and weighing 600 grams, it includes built-in speakers and is compatible with PCs, Raspberry Pi, PS4, Xbox 360, and Nintendo Switch. Suitable for gaming, secondary displays, and Raspberry Pi projects, it operates from -10°C to +60°C. Pacific Custom Engineering ensures authentic components. Free & Fast shipping from Washington State
Add to Cart

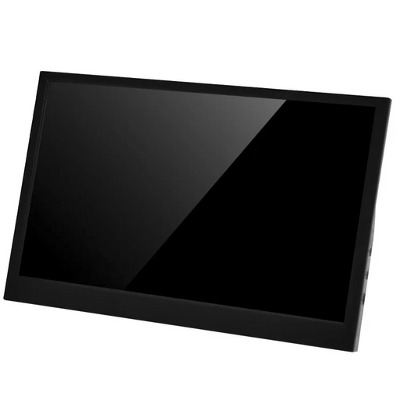

The 11.6 Inch Portable Monitor features a 1366x768 resolution TFT LCD display, designed for use with a variety of devices including PCs, Raspberry Pi, laptops, PS4, Xbox 360, and Nintendo Switch via an HDMI-compatible connection.
The monitor has a 16:9 display ratio, a 60Hz refresh rate, and a brightness of 200cd/m², with a contrast ratio of 800:1, providing clear visuals for basic applications.
It includes built-in speakers and supports Type-C and HDMI-compatible dual output connections, with a Type-C port for power and signal transmission (requires a 5V/3A adapter if the screen does not light up).
The monitor measures approximately 290mm x 188mm x 12.5mm and weighs around 600 grams, making it portable for travel or secondary display use.
It is compatible with Thunderbolt-enabled phones and laptops via Type-C, though smartphones may require an adapter to convert to HDMI.
The package includes a portable monitor, a Type-C to Type-C cable, a USB-A to Type-C cable, a mini HDMI cable, and a display bracket.
It operates within a temperature range of -10°C to +60°C, based on typical TFT display standards.

Key Features:

  • Display: 11.6-inch TFT LCD, 1366x768 resolution – Offers clear visuals for basic gaming and productivity.

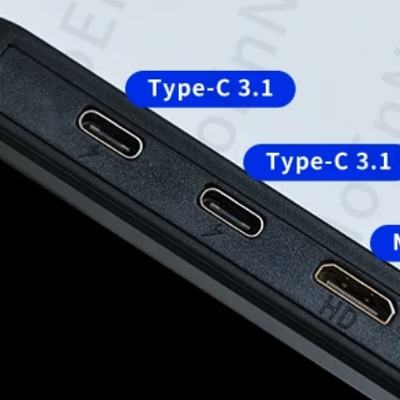

  • Connectivity: HDMI-compatible and Type-C dual output – Supports devices like Raspberry Pi, PS4, Xbox 360, and laptops.
  • Refresh Rate: 60Hz – Suitable for standard video playback and gaming.
  • Brightness and Contrast: 200cd/m² brightness, 800:1 contrast ratio – Provides adequate visibility in moderate lighting.

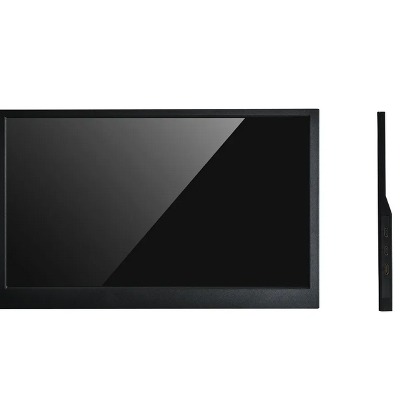

  • Dimensions and Weight: Approximately 290mm x 188mm x 12.5mm, 600 grams – Lightweight for portability.
  • Built-in Speakers: Includes audio output for convenience.
  • Operating Temperature: Suitable for -10°C to +60°C environments.

Common Applications:

  • Secondary Display: Extends screens for laptops or PCs, useful for multitasking or presentations.

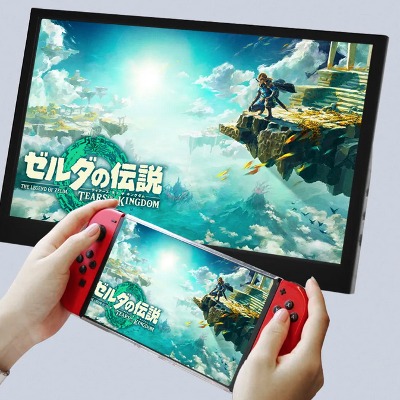

  • Gaming: Connects to PS4, Xbox 360, or Nintendo Switch for portable gaming setups.
  • Raspberry Pi Projects: Serves as a display for Raspberry Pi-based applications, such as DIY projects or media centers.
  • Industrial Use: Functions as a monitor for industrial or medical equipment with HDMI output.
  • Video Playback: Displays videos, TV series, or photos on a larger screen when connected to compatible devices.

Specifications:

  • Brand: Pacific Custom Engineering
  • Display Size: 11.6 inches
  • Resolution: 1366x768
  • Panel Type: TFT LCD
  • Display Ratio: 16:9
  • Refresh Rate: 60Hz
  • Brightness: 200cd/m²
  • Contrast Ratio: 800:1
  • Connectivity: HDMI-compatible, Type-C
  • Dimensions: Approximately 290mm x 188mm x 12.5mm
  • Weight: Approximately 600 grams
  • Operating Temperature: -10°C to +60°C
  • Quantity: 1 monitor per pack

Quality Assurance:

Pacific Custom Engineering provides genuine components, ensuring consistent performance for portable display applications.
