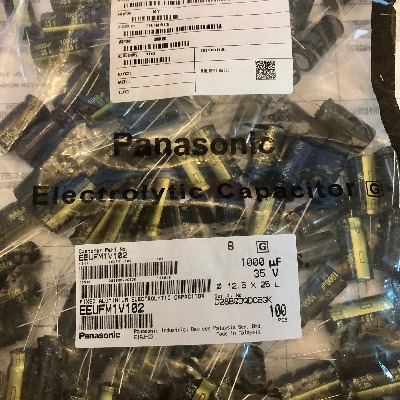

[RAW] 1 x Aluminum Electrolytic Capacitor 1000uF 35V 20% 12x25mm FM Radial Panasonic - EEU-FM1V102
Category: RAW MATERIALS
$0.00
In Stock
SKU: PANA-FM-1V102-1000-35-001
This pack includes one Panasonic FM Series 1000µF 35V Electrolytic Capacitors. With low ESR, high ripple current capacity (2670mA), and a lifespan of up to 5000 hours at 105°C, these 12x25mm radial capacitors are designed for filtering, decoupling, audio, and LED applications in 12V–30V systems. Pacific Custom Engineering provides authentic Panasonic components for repair or circuit use.
Free & Fast Shipping from Washington State
The Panasonic FM Series 1000µF 35V Aluminum Electrolytic Capacitor is available in a pack of one (Part # EEU-FM1V102). These radial-lead capacitors feature low impedance, high ripple current handling, and consistent performance within a 12mm x 25mm size. They are designed for mid-voltage circuits requiring substantial capacitance for filtering and power stabilization.
Key Features:
Capacitance: 1000µF – Provides significant capacity for energy storage and voltage smoothing.
Voltage Rating: 35V – Compatible with circuits up to 30V, including 12V and 24V systems.
Tolerance: ±20% – Ensures reliable operation across various conditions.
Low ESR: The FM series offers reduced impedance, contributing to lower heat generation and improved efficiency.
High Ripple Current: Rated at 2670mA, capable of handling considerable load fluctuations.
Lifespan: Rated for up to 5000 hours at 105°C, supporting extended use in typical applications.
Radial Design: 12mm diameter x 25mm height with a 5mm lead pitch, fitting standard PCB configurations.
Polarized: Marked to indicate proper installation orientation.
Common Applications:
Power Supply Filtering: Stabilizes voltage in 12V–30V power supplies, such as adapters or industrial equipment.
Decoupling: Maintains steady power for microcontrollers, CPUs, or digital circuits under varying loads.
Audio Systems: Reduces noise in amplifiers or audio equipment operating within 35V limits.
LED Drivers: Supports consistent current in 12V–30V LED circuits.
Electronics Repair: Acts as a replacement for capacitors in power boards, computer hardware, or consumer electronics.
About Panasonic FM Series:
The FM series is noted for 40%–70% lower impedance compared to standard electrolytic capacitors, enhancing stability and efficiency. This one-pack serves as a practical option for repairs, prototyping, or circuit applications requiring dependable performance, reflecting Panasonic’s engineering standards.
Specifications:
Brand: Panasonic
Series: FM
Capacitance: 1000µF
Voltage: 35V DC
Tolerance: ±20%
Dimensions: 12mm (D) x 25mm (H)
Lead Spacing: 5mm
Operating Temperature: -40°C to +105°C
Quantity: 6 pieces per pack
Quality Assurance:
Pacific Custom Engineering supplies genuine Panasonic components, ensuring consistent performance for a range of circuit uses.
Data Sheet: https://pacificcustomengineering.com/wp-content/uploads/2023/11/data-sheet-Panasonic-FM-ABA0000C1018.pdf
